Switch

Click the dropdown to see available bundles.

£249.99

Total:

£249.99

New Product!

One Controller, Countless Solutions.

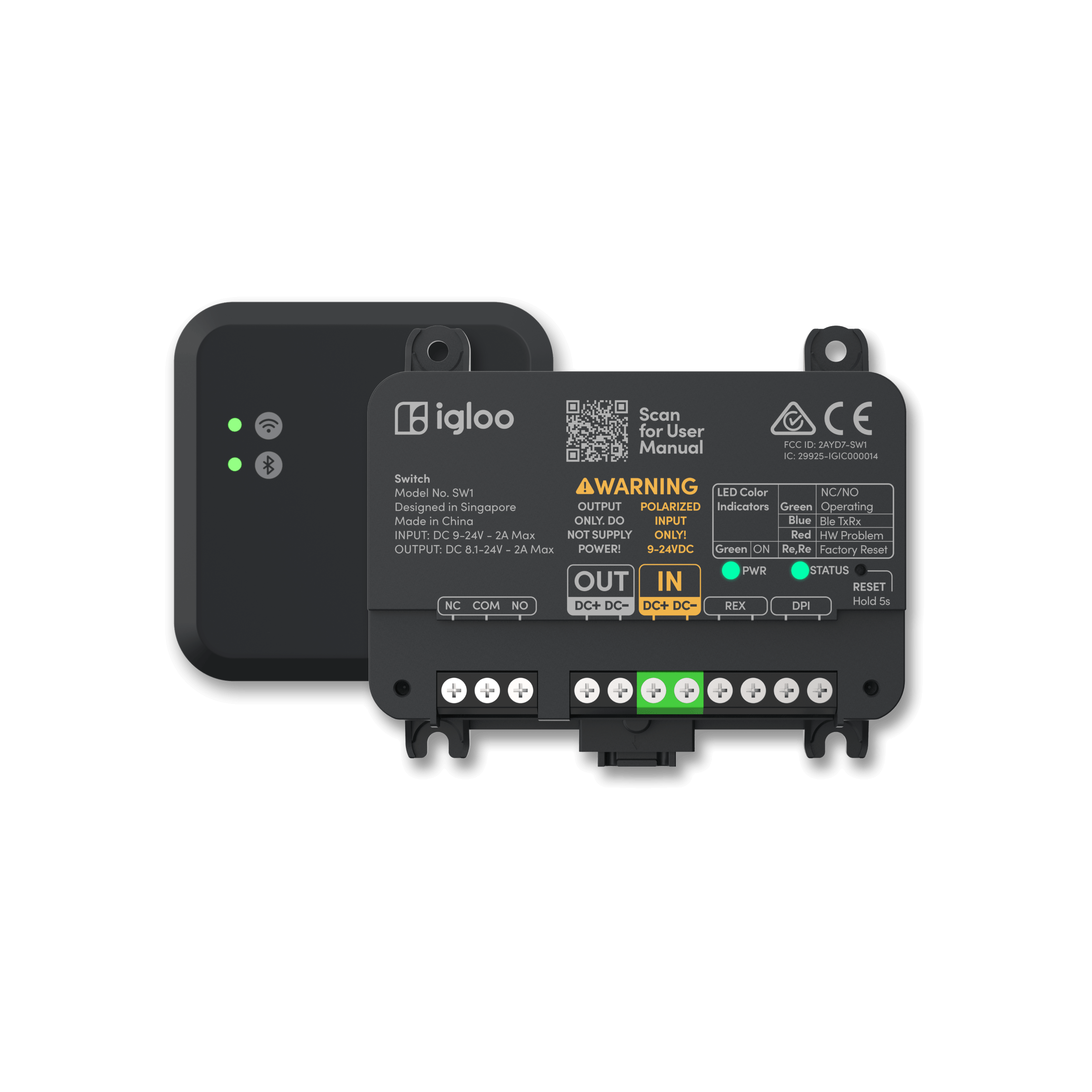

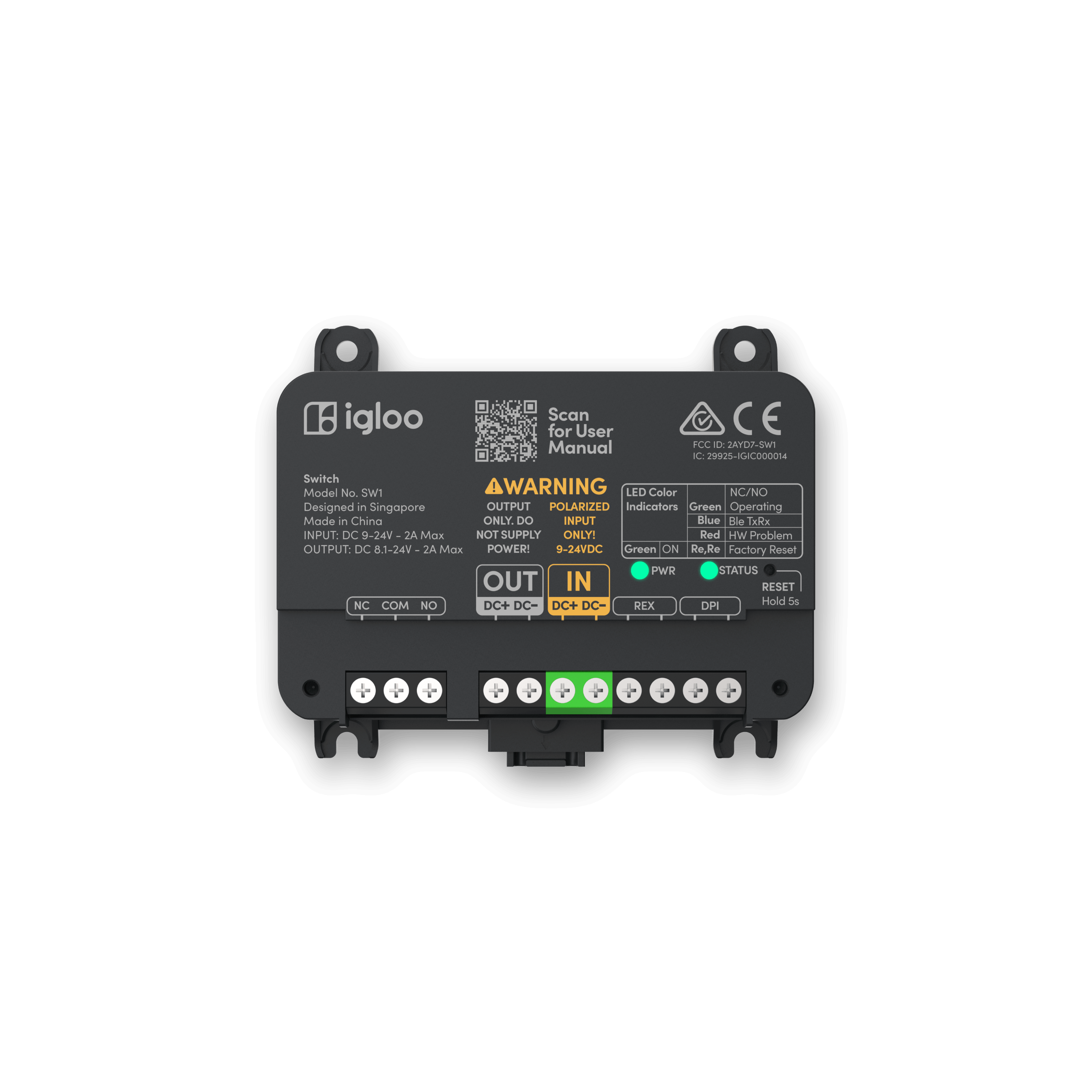

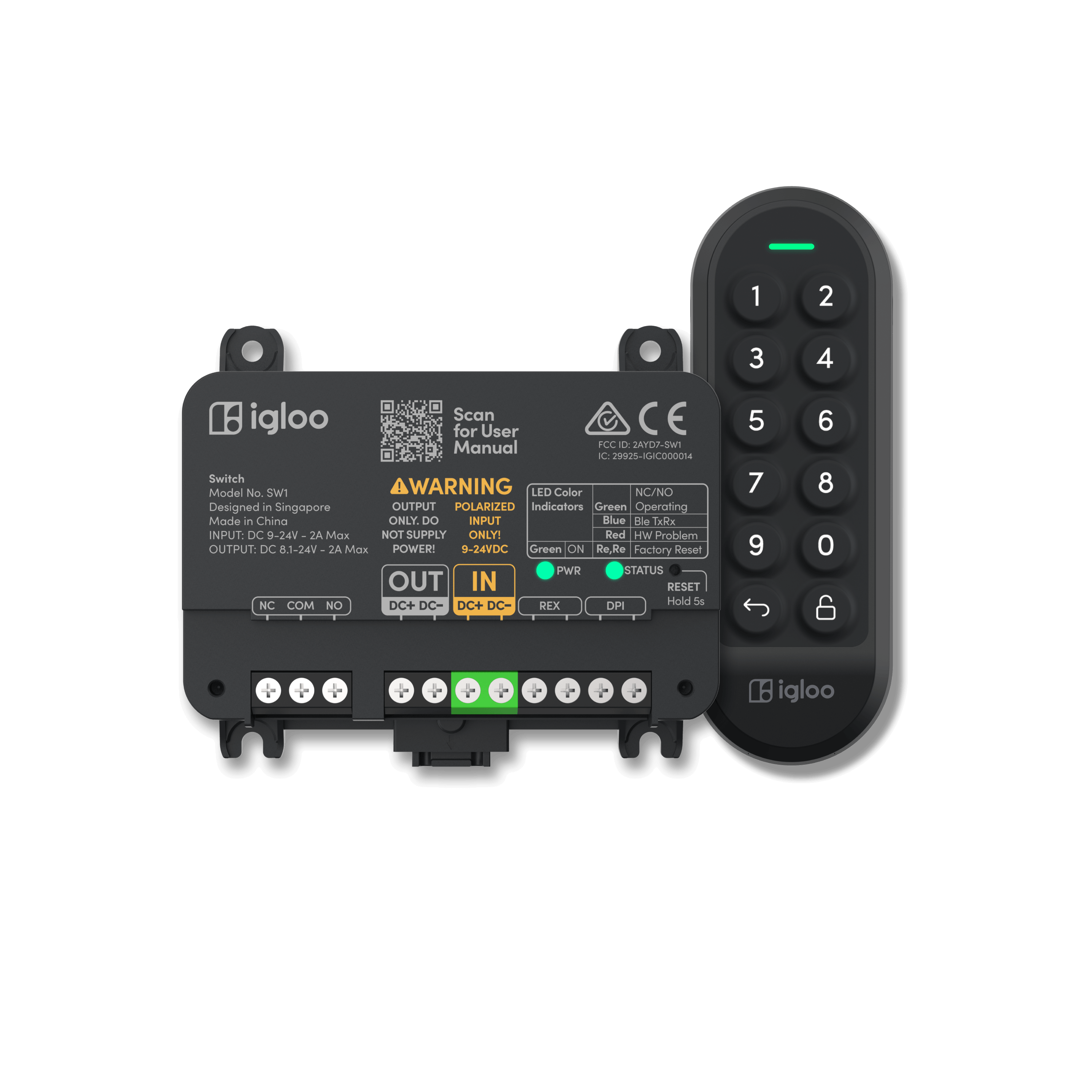

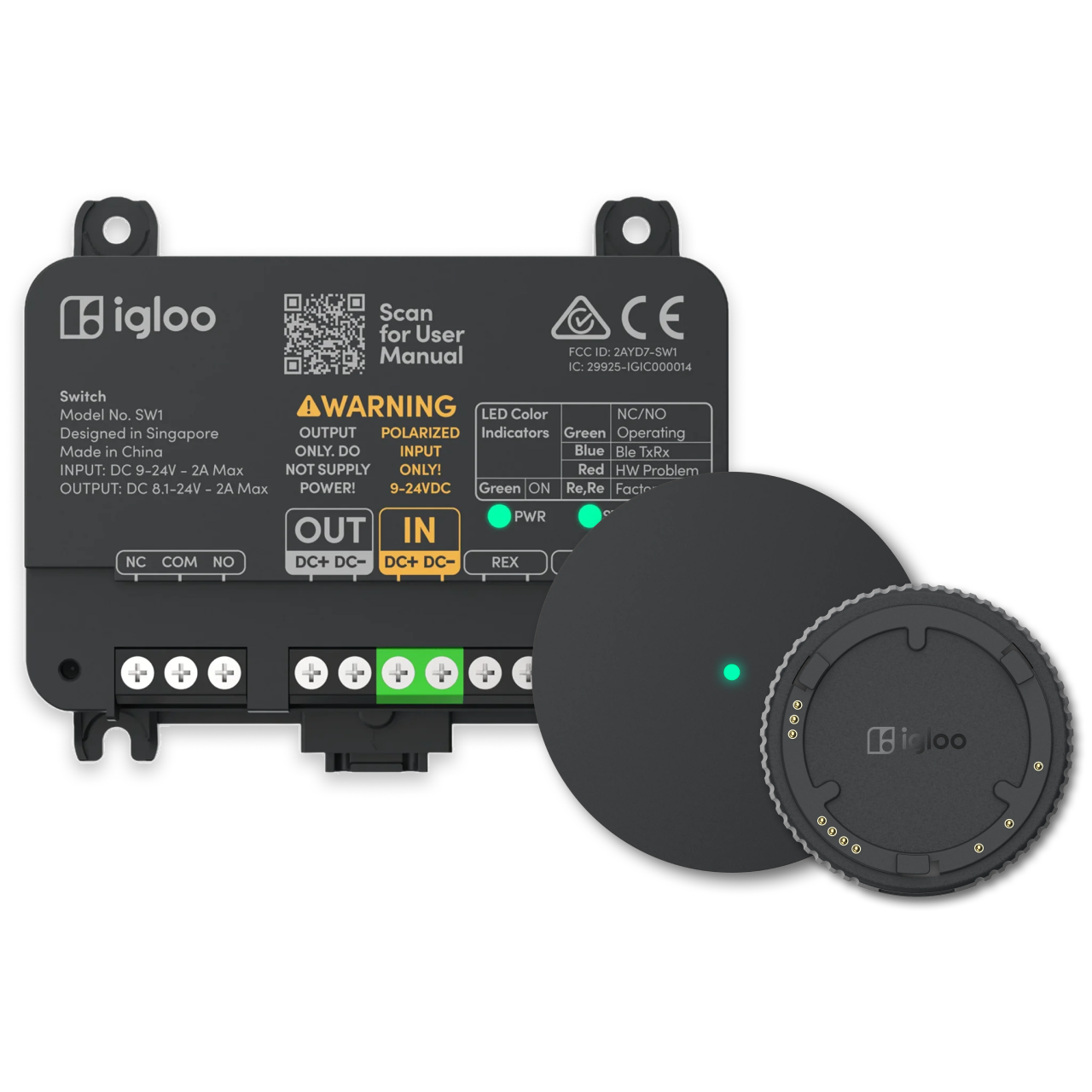

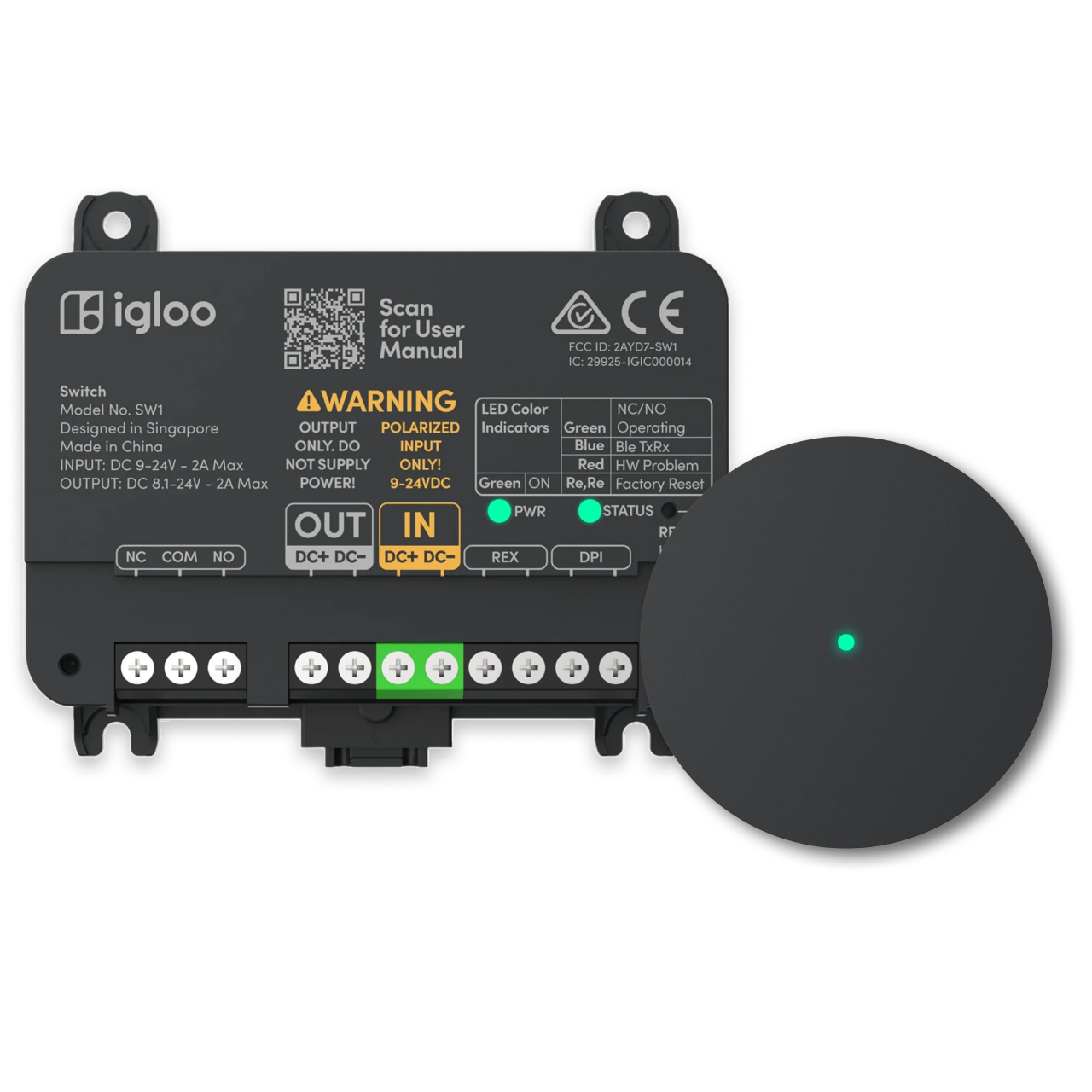

Connect a range of electrical locks and devices to the igloo ecosystem, leveraging the capabilities of igloo solutions on any 12-24V access control device. This smart Bluetooth relay is suitable for new installations or retrofits and works with accessories like the Keypad, Bridge & Key Fob. It offers secure access through Bluetooth keys, and time bound pins with the Keypad. Ideal for use in apartments, hotels, co-living spaces, offices, and facilities. It can be configured in a fail-safe or fail-secure setup for maximum adaptability.

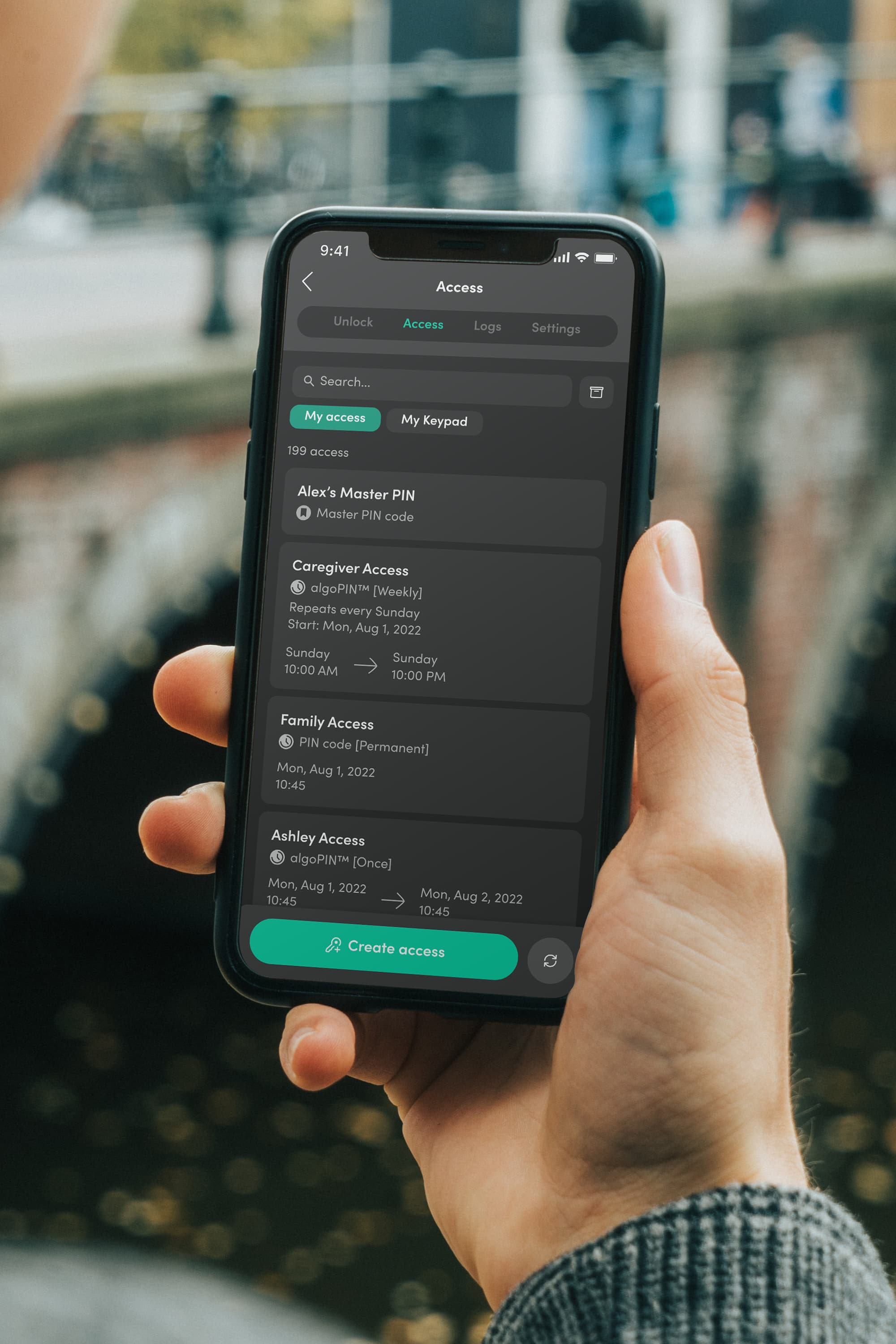

Reliable Digital Keys: Unlock using Mobile Bluetooth keys via the igloohome or iglooworks mobile app or web dashboard for remote control with the WiFi bridge.

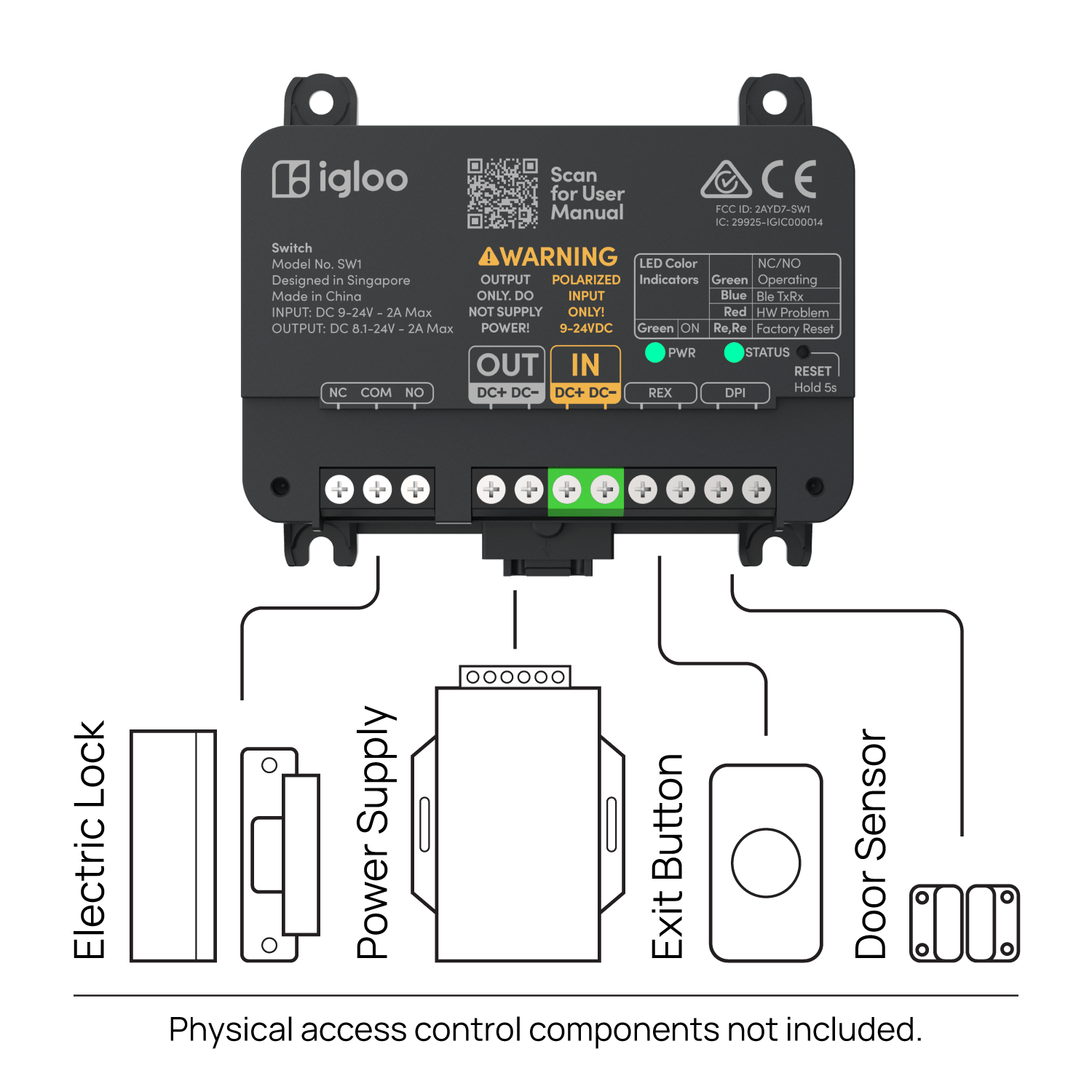

Ultra Flexible: Control any electric dry or wet contact lock via the igloo ecosystem or retrofit into your existing access control hardware.

Easy Installation: Compact size fits into standard indoor or outdoor access control enclosures. Easily screw mount or secure to DIN Rail EN 50022 – (35mm × 7.5mm x 1mm) for quick installation.

Auto Lock: Automatically locks via timed delay or once the door is open and closed to give you greater peace of mind.

Passage Mode: Turn off automatic locking with schedules during busy times of the day

Powered by algoPIN: Link it with the Keypad for instant time bound pincode access

Installation Guide

Datasheet

The Switch is compatible on igloohome & iglooworks.

Technical Specs

Compatibility

Door type

Common Access, Lobby, Gate, Gantry, Electric Dry & Wet Contact

Supported devices

Keypad, Key Fob, Bridge. Link up to 8 devices via BLE

General

Modes of access (Entry & Exit)

Digital Keys via Bluetooth®, Exit button

PIN types (via Keypad)

Permanent, Duration, One-Time, Recurring, Custom, algoPIN™

Operations

Power Input

9-24V DC ~ 2A

Power Output

8.1-24V DC ~ 2A

Output Pins

Lock Control: Normally Open, Normally Controlled

Input Pins

Request to exit (REX), Door Position Input (DPI)

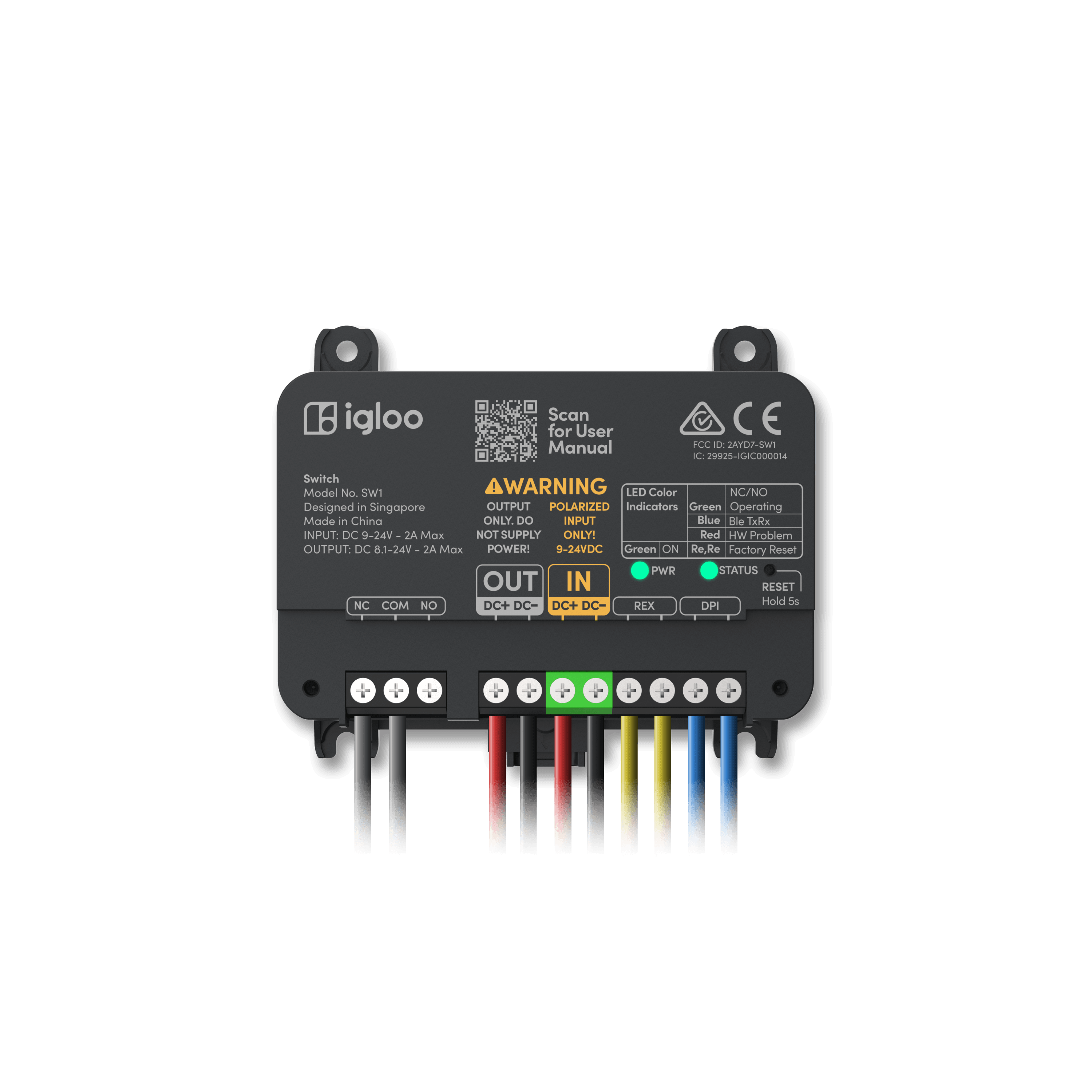

Connector Type

Screw Terminals

Wire Guage

26-14 AWG

Dimensions

Size (W x H x T)

3.19 (W) x 2.68 (H) x 0.9 (T) in
81 (W) x 68 (H) x 23(T) mm

Environmental

Operating temperature

-4°F to 122°F
-20°C to 50°C
0-85% RH non condensing

IP Rating

IP50

Communications

Bluetooth® Type

Bluetooth® Low Energy

Material

Body

ABS-PC, UL94 V-0 fire rating

Weight

Net Weight

0.07 g / 0.15 lb

Gross Weight (with packaging)

0.1 kg / 0.22 lb

Others

Certifications

IP50, FCC, ISED, RoHS 2, CE-RED, IMDA, RCM

Usage

Advised to be installed with an appropriately rated enclosure for installation scenario, within the operating temperature range. Any application of the product near combustible or explosive environments is at the user’s sole and exclusive risk.

What's included

1 x Quick Start Guide
1 x Switch
1 x Mounting Screws
1 x Mounting Anchors
1 x Compliance Sheet
